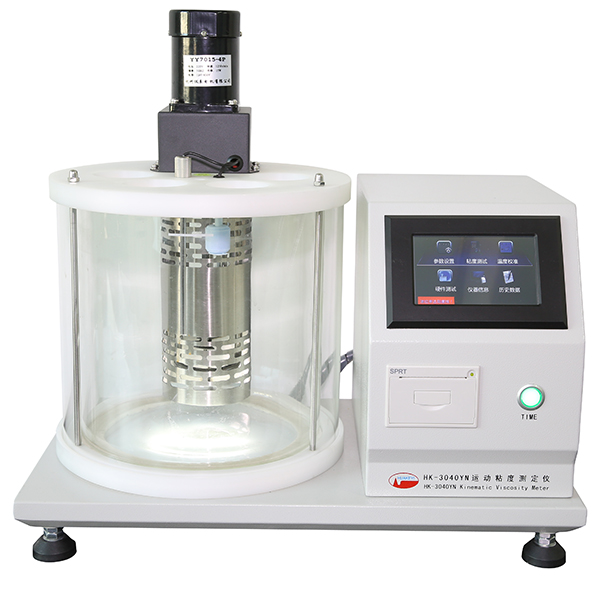

HK-3040YN Kinematic Viscosity Tester

HK-3040YN Kinematic Viscosity Tester mainly used to test the viscosity of petroleum(Newtonian Liquid).




Supplies category:Oil Tester

Material code:HK-3040YN

Manufacturers,:HKY Technology Co.,Ltd.



  • Introduction
  • Features
  • Specifications
  • Configuration

HK-3040YN Kinematic Viscosity Tester mainly used to test the viscosity of petroleum(Newtonian Liquid), with the LED screen in Chinese or English, touch screen control, PWM temp-control method, sensitive temperature sensing component, auto position test, auto accurate timing, auto viscosity calculate, auto print and storage result.


Round and double-layer thermostat bathtub make temp evenly and make excellent temp control. Bathtub inner component, like heating equipment, draft tube and stirring motor are made by stainless steel, with the quality anti-corrosion and durability. The LED lighting, energy saved and environment protected, make the machine-human communication interface have a good perspective. The parameter setting of timing make it easy to read and easy to operate.



 The constant temperature bath is double circular cylinder.

 With the liquid level alarm reminding, automatically check the liquid level, prevent dry-boiling.

◆ Temperature controlling system is includes of advanced SSR solid-state relay, no contacting, no operation noise, no spark, vibration resistance, long use life.

◆ Bathtub inner component, like heating equipment, draft tube and stirring motor are made by stainless steel, with the quality anti-corrosion and durability.

◆ The LED lighting, energy saved and environment protected

◆ The touch screen operation makes the machine-human communication interface have a good perspective.

◆ With the Ethernet external communication interface and USB interface.

◆ Storage Function:1000 record can be saved, can be checked by date and printed.



1、Temp Control setting:Ambient temp~100℃

2、 Test hole:4 holes

3、 Temp control accuracy:±0.1℃

4、 Stir speed:1250r/min

5、  Heating power consumption:main heating: 800W、Assist heating:300W

6、 Print function:Build-in mini-type thermal printer, Auto-print and Manual-print available.

7、 Storage Function:1000 record can be saved, can be checked by date and printed.

8、 Outside interface:WAN, USB available

9、 Dimension & Weight:L400mm×W450mm×H650mm, 25kg.

10、 Capillary qty:2 pcs




Application Environment


1、Working Voltage:1)AC(198~242)V, 50~60Hz; 2)AC(120±10%)V, (60±1)Hz;

2、 Ambient temperature: (0~40)℃;

3、 Ambient relative humidity:≤85%

The instrument should be put into a no air flow laboratory and on a stable and no glare table.

The laboratory should have fire extinguisher and other extinguish material.

Don’t put any inflammable、explosive and strong corrosive gas or liquid around the instrument, no strong electromagnetic interference and obvious mechanical shock.



1Kinematic Viscosity Tester

1 piece

2Capillary tube support

3 piece

3Capillary tube 0.8

1 piece

4Capillary tube 1.0

1 piece

5Capillary tube 1.2

1 piece

6Capillary tube 1.5

1 piece

7Thermal cover

2 piece

8Protective tube

2 piece

9Operation Manual

1 piece

10Power cable

1 piece

11Production certificate

1 piece

×
